Fire Doors are meant to protect life & property in the event of fire emergency by preventing the spread of fire & smoke. Firesquad provides fire rated certified metal doors for upto 02 Hours fire rating. Designed to meet life safety equipment in various types of building, structures & industrial establishments. These doors compliment existing modern day passive fire-fighting and meet national fire safety requirements for buildings.
Frame Sheet Thickness: 1.5mm
Leaf Sheet Thickness: 1mm
Infill: Glass Wool (96kg/M3) Door
Glass: Schott Puran/Wire Meshed Frame
Pivot/Hinge SS Butt Hinge: OZ-SS-BHF 4x3x3
Door Closer: NSK-680
MOC: GPSP with Zinc Coating Coated
Finish: Epoxy Polyester Powder

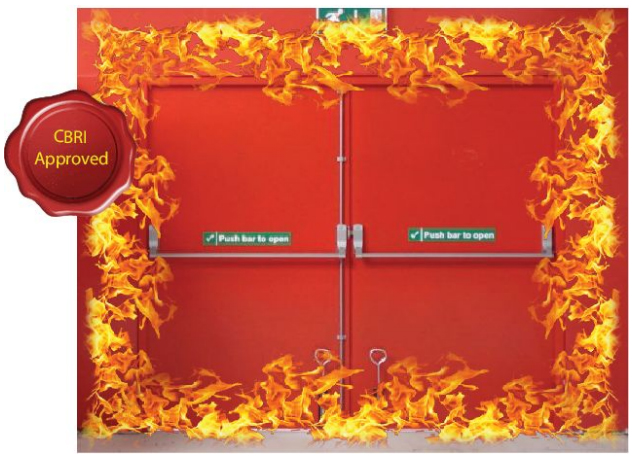

Suppliers of galvanized steel Flush Fire doors of 60 / 120 minutes fire rated tested in accordance with IS 3614 Part 2 & BS 476 Part 22.

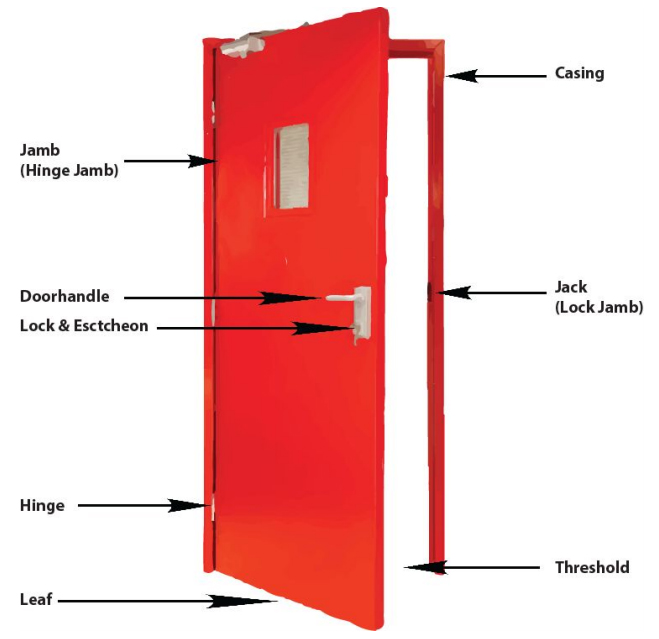

FRAME: Door frames to be single / double rebate profile manufactured from 18 / 16 gauge galvanized steel profile supplied in assembled form ready to install at site. Manufactured from two galvanized steel sheets lock seam jointed at stile edges to form a double skin fully flush shell. Additional reinforcements for all hardware fixtures as required.
SHUTTER: Door Shutter in 46 / 55 mm thick steel fire Check door of 60 / 120 minutes Fire rating conforming to BS; 476 Part-22and IS : 3614 Part-II Fabricated with 2 No. 1.2 mm thick galvanized steel sheet sandwiching infill of (96 kg /Cum) Honeycomb structure M3 mineral wool with proprietary fire resistant insulation materials in-between.

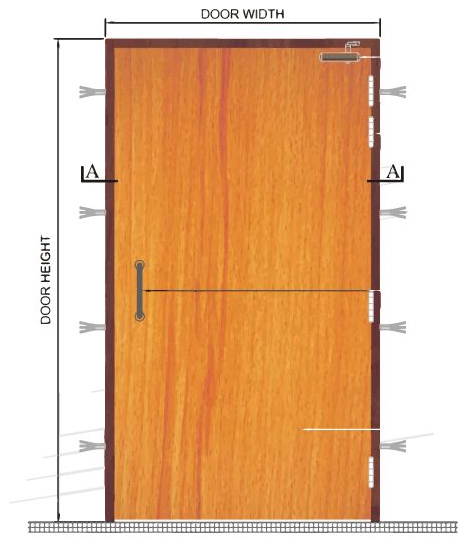

DOOR FRAME : Wooden Door Frame section with heat activated intumescent fire seal strip and finished with one coat of anti-termite fire retardant primer or paint and fitted with acoustic seal on all three sides.
DOOR SHUTTER : 65mm thick acoustic cum fire/smoke check Shutter of 38 db acoustic cum of 120 minutes rating conforming to BS 476 Part-22 & IS: 3614 part-2 comprising of sandwiching 29mm thick fire resistance insulation material between two 12mm thick calcium silicate board faced with 6mm thick commercial/teakply with heat activated intumescent fire seal strip of size 15mm x 4mm mounted in the grooves of hardwood lipping on all three sides except bottom along with acoustic seal.

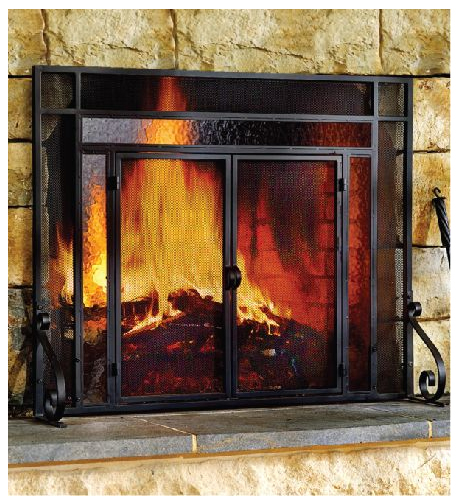

Sliding Glass Doors and Pivoting Screens. Antique brass finish with a few rusty spots inside. Can easily be spray painted black with high heat spray paint. These fireplace doors are made by the manufacturer of the fireplace for specific units.
Designed for a surface mount, these doors sit outside the fireplace opening against a flat surface and help reduce heat or cool air loss up the chimney by as much as 90% for year-round energy savings.
